Turbo Network Card

[Blacque Jacque]

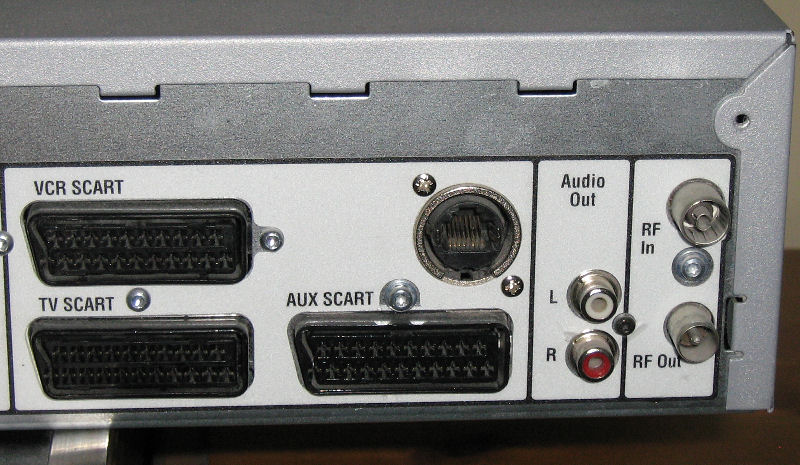

I took a slightly different approach for my two networked Tivos & used a Neutrik feedthrough RJ45:



It's more work as it requires removing or protecting the mainboard from steel swarf & punching a 24mm dia. hole in the back panel, but once done it looks like it was meant to be there.`A short patch cable runs internally to the back of the socket.

Tivo Neutrik RJ45.JPG (110.81 KiB) Viewed 5074 times

[Alek]

I downloaded and burned the iso, it seemed straight forward except when I try to boot to it I get an error. "only one processor found"


Alek

And if I leave it for a few mins , it says hdc lost interrupt

Alek

[adsplace]

On recommendation i ordered some Turbo net cards from NZ from John and they worked a treat and on the new AltEPG too, no problems at all.

Quick question, does anyone know how to stop them both reporting the same Mac addresses to the router.

I have modified the mac address on one via telnet and the "nic_config_tivo", it shows it's changed, but the old "default" one is still presented to the router, hence both are getting the same IP address assigned.

[tivomas]

On recommendation i ordered some Turbo net cards from NZ from John and they worked a treat and on the new AltEPG too, no problems at all.

Quick question, does anyone know how to stop them both reporting the same Mac addresses to the router.

I have modified the mac address on one via telnet and the "nic_config_tivo", it shows it's changed, but the old "default" one is still presented to the router, hence both are getting the same IP address assigned.

The mac is set in the rc config files, I'll see if I can find the specific file name, it's a quick edit and reboot then

File: /etc/rc.d/rc.net.turbonet

[adsplace]

On recommendation i ordered some Turbo net cards from NZ from John and they worked a treat and on the new AltEPG too, no problems at all.

Quick question, does anyone know how to stop them both reporting the same Mac addresses to the router.

I have modified the mac address on one via telnet and the "nic_config_tivo", it shows it's changed, but the old "default" one is still presented to the router, hence both are getting the same IP address assigned.

The mac is set in the rc config files, I'll see if I can find the specific file name, it's a quick edit and reboot then

File: /etc/rc.d/rc.net.turbonet

Many thanks Tivomas, found the file, just waiting for recordings to finish before rebooting

[Alibaba]

Pretty nifty work there, blacque jacque, pretty nifty username as well ..

[Alek]

I downloaded and burned the iso, it seemed straight forward except when I try to boot to it I get an error. "only one processor found"


Alek

And if I leave it for a few mins , it says hdc lost interrupt

And tried in a different PC gives unknown bus type 129

Any help appreciated.

Alek

[gvm]

PS you don't have to get as fancy with the network jack, I used to just run my cable out a cooling hole near the fan (yes I had to recrimp a new connector). Tin snips will work in a pinch...if you are in a hurry...but watch for metal filings left inside!

The best tool I've found for cutting holes in cases with boards in situ is a "Nibbler tool". It works at right angles to the surface and takes small "bites" a few mm across out of the metal, so it's easy to insert it through an existing hole and just "nibble" it out to size. Because the "bites" are pretty large, there's a greatly reduced risk of losing one on a circuit board. They only cost a few pounds too.

This is the type of thing I mean: http://www.rapidonline.com/Tools-Fasteners-Production-Equipment/Hand-Tools/Cutters-Snips/Nibbler/36734/kw/86-2150?source=googleps&utm_source=googleps. (I don't have any connection with this site - it was just the first one I found with the right picture on it).

Regards,

gvm

[millsb]

On recommendation i ordered some Turbo net cards from NZ from John and they worked a treat and on the new AltEPG too, no problems at all.

Quick question, does anyone know how to stop them both reporting the same Mac addresses to the router.

I have modified the mac address on one via telnet and the "nic_config_tivo", it shows it's changed, but the old "default" one is still presented to the router, hence both are getting the same IP address assigned.

If you're using the altepg image with a turbonet or clone, be aware that nic_config_tivo won't do anything useful for you. All it does is rewrite /etc/rc.d/rc.net, which only works with the cachecard NIC.

[professional]

PS you don't have to get as fancy with the network jack, I used to just run my cable out a cooling hole near the fan (yes I had to recrimp a new connector). Tin snips will work in a pinch...if you are in a hurry...but watch for metal filings left inside!

The best tool I've found for cutting holes in cases with boards in situ is a "Nibbler tool". It works at right angles to the surface and takes small "bites" a few mm across out of the metal, so it's easy to insert it through an existing hole and just "nibble" it out to size. Because the "bites" are pretty large, there's a greatly reduced risk of losing one on a circuit board. They only cost a few pounds too.

This is the type of thing I mean: http://www.rapidonline.com/Tools-Fasteners-Production-Equipment/Hand-Tools/Cutters-Snips/Nibbler/36734/kw/86-2150?source=googleps&utm_source=googleps. (I don't have any connection with this site - it was just the first one I found with the right picture on it).

Regards,

gvm

Nibblers are too fiddly - try these.

Perfect job every time.



http://www.my-tool-shed.co.uk/p7401/Q.M ... _info.html

[healeydave]

On recommendation i ordered some Turbo net cards from NZ from John and they worked a treat and on the new AltEPG too, no problems at all.

Quick question, does anyone know how to stop them both reporting the same Mac addresses to the router.

I have modified the mac address on one via telnet and the "nic_config_tivo", it shows it's changed, but the old "default" one is still presented to the router, hence both are getting the same IP address assigned.

If you're using the altepg image with a turbonet or clone, be aware that nic_config_tivo won't do anything useful for you. All it does is rewrite /etc/rc.d/rc.net, which only works with the cachecard NIC.

Brian is correct, there is a new AltEPG image with bug fixes that I will upload soon. The silicon dust nic_config_tivo should not be used the new image!
The new image automatically detects which NIC your using and loads the relevant driver. DHCP is working by default for all cards and changes made on the AltEPG ISO will take effect properly (on any NIC) should you need to switch from DHCP to Static.

[CarlWalters]

...there is a new AltEPG image with bug fixes that I will upload soon. The new image automatically detects which NIC your using and loads the relevant driver. DHCP is working by default for all cards and changes made on the AltEPG ISO will take effect properly (on any NIC) should you need to switch from DHCP to Static.

Brilliant news . Should I wait for this image or carry on trying to get my TurboNZet working with the original AltEPG image (which I haven't managed to get dialling out as yet)?

[healeydave]

...there is a new AltEPG image with bug fixes that I will upload soon. The new image automatically detects which NIC your using and loads the relevant driver. DHCP is working by default for all cards and changes made on the AltEPG ISO will take effect properly (on any NIC) should you need to switch from DHCP to Static.

Brilliant news . Should I wait for this image or carry on trying to get my TurboNZet working with the original AltEPG image (which I haven't managed to get dialling out as yet)?

Yes, I would!

[CarlWalters]

...there is a new AltEPG image with bug fixes that I will upload soon. The new image automatically detects which NIC your using and loads the relevant driver. DHCP is working by default for all cards and changes made on the AltEPG ISO will take effect properly (on any NIC) should you need to switch from DHCP to Static.

Brilliant news . Should I wait for this image or carry on trying to get my TurboNZet working with the original AltEPG image (which I haven't managed to get dialling out as yet)?

Yes, I would!

Sorry I should have been more careful in phrasing my question

Are you saying it's worth waiting for the new ISO?

[drgeoff]

I downloaded and burned the iso, it seemed straight forward except when I try to boot to it I get an error. "only one processor found"


Alek

And if I leave it for a few mins , it says hdc lost interrupt

And tried in a different PC gives unknown bus type 129

Any help appreciated.

Alek[/quote]
I haven't used that network config iso before. I've just now downloaded and burned it. Tried it on 2 computers. Both give the "only one processor" error. One does boot OK and the command line appears to work. The other complains of "lost interrupt" several times but does eventually boot.

I downloaded nic_cd_lba48_20050218.iso from http://forum.technicalpeak.com/viewtopic.php?f=3&t=13 and burned that. No better!
